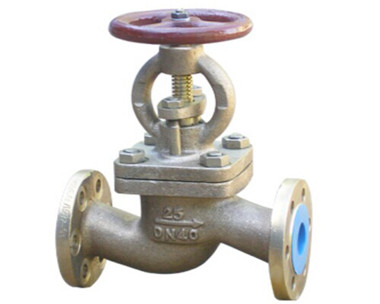

GB/T587-93船用法兰青铜截止阀

更新时间:GB/T587-93船用法兰青铜截止阀

已被浏览:

详细介绍

商品详细说明:



性能规范 Technical Data

公称压力 Nominal Pressure(MPa)

公称通径 Nominal Diameter(am)

适用介质 Applicable Medium

0.6

15~150

海水、淡水、滑油、燃油和 t≤250℃蒸汽 Sea water, Fresh water, Lubricanting oil, Fuel oil, t≤250℃ steam.

1.0

65~150

1.6

65~150

2.5

15~125



主要零部件材质 Materials of Main Parts

零件名称 Parts Name

材料 Material

名称 Name

牌号 Marks

阀体、阀盖、阀盘 Body/Cover/Disc

铸锡青铜 Cast Tin Bronze

ZCuSn10Zn2, ZCuSn5Pb5Zn5

阀杆 Stem

铝青铜 Aluminum Bronze

CuA19Mn2



PN1.0、1.6、2.5MPa的A型、B型基本尺寸 Dimensions

公称 压力 PN (MPa)公称 通径 DN (mm)结构尺寸
Structure Dimension
壁厚 Thickness法兰 Flange螺栓
Bolt
手轮
Hand wheel
升程
Lift Range m
参考重量 Weight(kg)
LH≈H1
A型B型A型B型B型DD1D2d0bn个ThDoSA型B型
1.065290115309275115615512310415146M14140121714.612.6
80310125345298125617013811815148M14160142018.917.1
100350150374325135619015813815148M14180142528.123.2
1254001754263721557215183164151410M14200173238.035.2
1504801804874151607240208190151412M14200173855.847.9
1.61254001754654051557225187168171710M16250223253.345.1
1504801805244571608255217196171912M16280243862.658.3
2.5201507521720375595684813124M1280874.64.4
2516080217203805105735613134M1280875.15.O
3218085236216855115836415136M14100996.36.3
4020090260236905125937415146M1412011118.57.7
50230952882589561351038415146M14140121410.910.3
65290115334301115717013211017178M16160141717.915.9
80310125362321125718514712617198M16200172025.423.5
1003501504273781358205167146171910M16250222537.632.8
1254001754934331559240196172212110M20280243265.452.6





PN0.6、1.6、2.5MPa的AS型、BS型基本尺寸 Dimensions

公称 压力 PN (MPa)公称 通径 DN (mm)结构尺寸
Structure Dimension
壁厚 Thickness法兰 Flange螺栓
Bolt
手轮
Hand wheel
升程 Lift Range m参考重量 Weight(kg)
LH≈H1
AS型BS型AS型BS型BS型DD1D2d0bn个ThDoSAS型BS型
0.6151309021720390480554011124M1080873.93.8
201509521720395490655011124M1080874.44.3
251601002172031004100756011144M1080874.84.9
321801052362161055120907014154M12100996.76.5
4020011526023611551301008014164M12120111188.2
5023012528825812551401109014174M12140121411.512.5
65290145310275145616013011014174M12140121715.213.8
80310155345298155619015012818194M1616014202221.2
100350175374325175621017014818204M16180142532.127.8
125400200426366200724020017818208M16200173243.241.5
150480225487415225726522520218208M16200173863.157.8
1.665290145334301145618514512218174M16160141920.519.2
80310155366321155620016013318198M16200172028.327.2
100350175427378175622018015818208M16250222545.339.5
125400200465405200725021018418228M1625022325751.3
150480225524457225828524021222228M2028024386968.9
2.5151309021720390595654714124M1280875.35
2015095217203955105755814124M1280875.85.5
251601002172031005115856814144M1280876.16.4
3218010523621610551401007818154M16100998.68.4
4020011526023611551501108818164M16120111110.611.2
50230125288258125616512510218174M16140121414.214
65290145334301145718514512218178M16160141920.719.4
80310155362321155720016013318198M16200172028.527.4
100350175427378175823519015822208M20250222545 840
125400200493433200927022018426268M24280243275 561.6
