碳钢不锈钢保温闸阀BZ41H/W-16P

更新时间:碳钢不锈钢保温闸阀BZ41H/W-16P

已被浏览:

详细介绍

应用规范
1、设计制造按GB12234-89
2、结构长度按GB12221-89
3、法兰尺寸按JB/T79-94
4、阀门检查和试验按GB13927

主要零件材质
零件名称ZG1Cr18Ni9Ti系列ZG00Cr18Ni10系列ZG1Cr18Ni12Mo2Ti系列ZG00Cr17Ni14Mo2系列WCB系列
阀体/阀盖ZG1Cr18Ni9TiZG00Cr18Ni10ZG1Cr18Ni12Mo2TiZG00Cr17Ni14Mo2WCB
闸板ZG1Cr18NI9TiZG00Cr18Ni10ZG1Cr18Ni12Mo2TiZG00Cr17Ni14Mo21Cr13
阀杆1Cr18Ni9TiooCr18Ni101Cr18Ni12Mo2TiooCr17Ni14Mo21Cr13
填料PTFE编织PTFE编织PTFE编织PTFE编织石墨Graphite
垫片304L+PTFE304L+PTFE316L+PTFE316L+PTFE石墨+304
Graphite+304
压盖ZG1Cr181Ni10ZG00Cr18Ni10ZG1Cr18Ni12Mo2TiZG00Cr17Ni14Mo2WCB
填料压环1Cr18Ni9Ti00Cr18Ni101Cr18Mi12Mo2Ti00Cr17Ni14Mo21Cr13
螺栓1Cr171Ni21Cr171Ni21Cr171Ni21Cr171Ni235CrMoA
螺母1Cr18Ni9Ti1Cr18Ni9Ti1Cr18Ni9Ti1Cr18Ni9Ti45

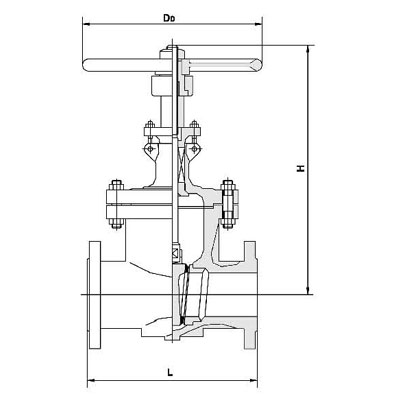

1.6MPa主要连接尺寸

尺寸DN40506580100125150200250300
Lmm200250265280300325350400450500
Hmm3103583724355006146748189691145
Wmm200240240280300320360400450560


2.5MPa主要连接尺寸

尺寸DN40506580100125150200250300
Lmm200250265280300325350400450500
Hmm35837343550061467481896911451145
Wmm240240280300320360400450560640


4.0MPa主要连接尺寸

尺寸DN40506580100125150200250300
Lmm200250280310350400450550650750
Hmm35837343550061467481896911451145
